Numerical Simulation of Plasma Bubbles

Alt Text

The Equatorial Plasma Bubbles (EPBs) are low-density plasma structures embedded in the large-scale Equatorial Ionization Anomaly (EIA). During storm time, EPBs can even reach mid-latitudes, e.g., the equatorward boundary of the main trough. These EPBs are termed super bubbles. We developed the coupled GITM (Global Ionosphere Thermosphere Model) and SAMI3 to simulate the response of the thermosphere-ionosphere-plasmasphere system to geomagnetic storms. Taking advantage of this coupled model, we can investigate the generation mechanism of the super bubbles.

Forecast of Global TEC Maps

Alt Text

The ionospheric TEC can be calculated using different delays of two or more transmitted frequencies from the Global Navigation Satellite Systems (GNSS), including GPS. In the GNSS era, the ionospheric TEC provides us with an unprecedented opportunity to image the ionosphere plasma content between ground-based receivers and the GNSS satellites.

Our TEC map reconstruction model, Video Imputation with SoftImpute, Temporal smoothing and Auxiliary data (VISTA), is capable of imputing a time series of matrices with a large number of missing values and guarantees both spatial smoothness and temporal consistency, which is very helpful for reconstructing scientific images with non-random missingness, i.e., the TEC maps/videos. Using this algorithm, we built a public TEC map database (https://doi.org/10.7302/jab6-2911).

Furthermore, we developed advanced ML models to predict global Total Electron Content (TEC) maps. We aim to develop models that could reveal multiscale structures and include important space weather events, such as geomagnetic storms and solar flares.

This project is supported by NSF through grant 2419186.

Hemispheric Asymmetry in the Thermosphere and Ionosphere

Alt Text

Since the launch of GOLD, spatial and temporal evolution of the thermospheric composition, temperature, and nightside electron peak density can be investigated in detail. Using GOLD observations, we investigate the hemispheric asymmetry in the thermosphere and ionosphere. We are interested in their latitude, LT, and seasonal dependence. We also use GITM to investigate its generation mechanisms, such as tides and Poynting Flux.

This project is supported by NASA through 80NSSC25K7605.

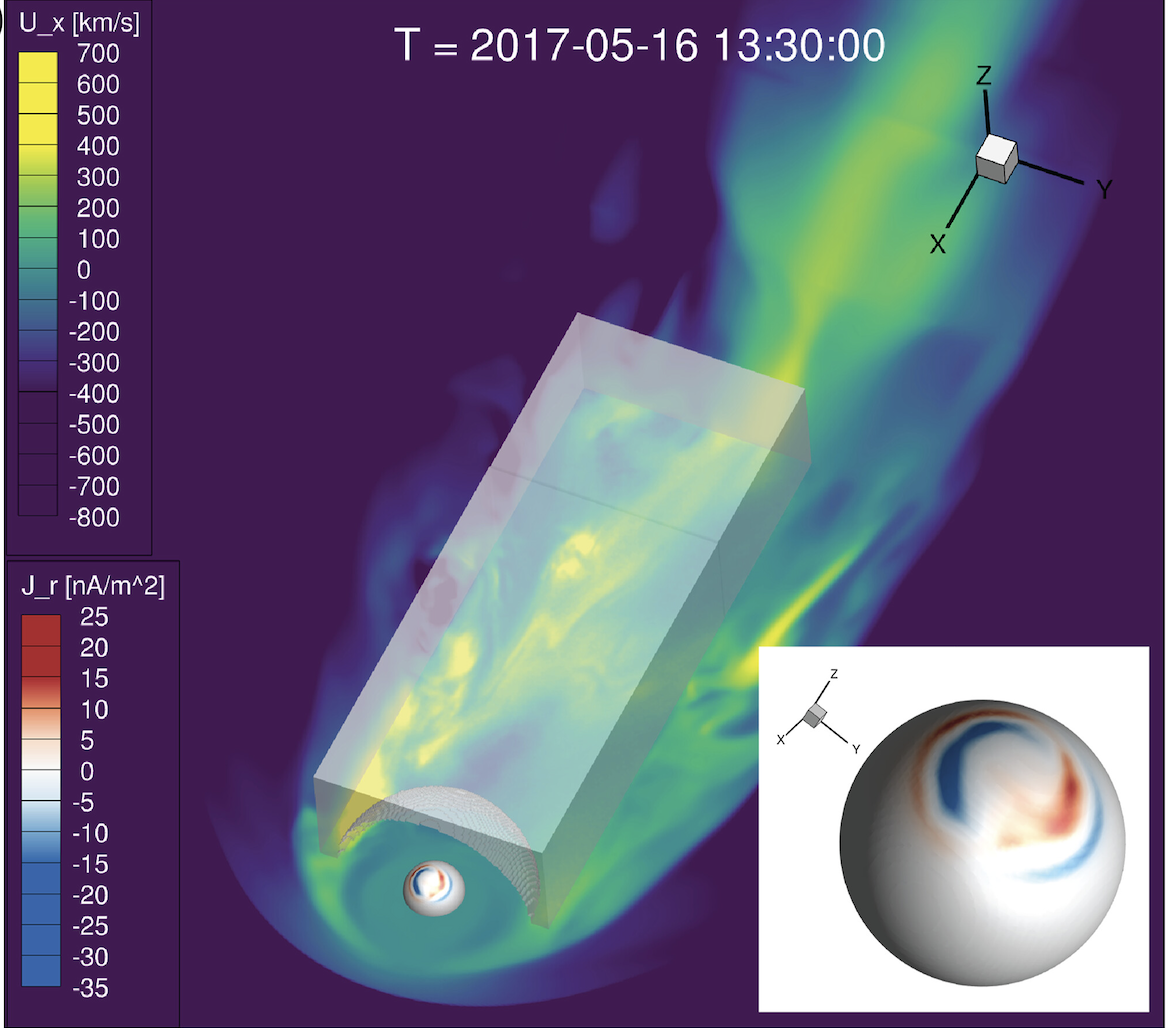

Improve Electrodynamics and dynamics in the polar region using MHD-AEPIC

Alt Text

We improve the specification of the bursty bulk flow (BBF) in the magnetotail and the associated plasma flows in the polar ionosphere with the advanced MHD-AEPIC model. Furthermore, we investigate their dynamic impact on the global circulation of the ionosphere.

This work is supported by NSF and NASA.
